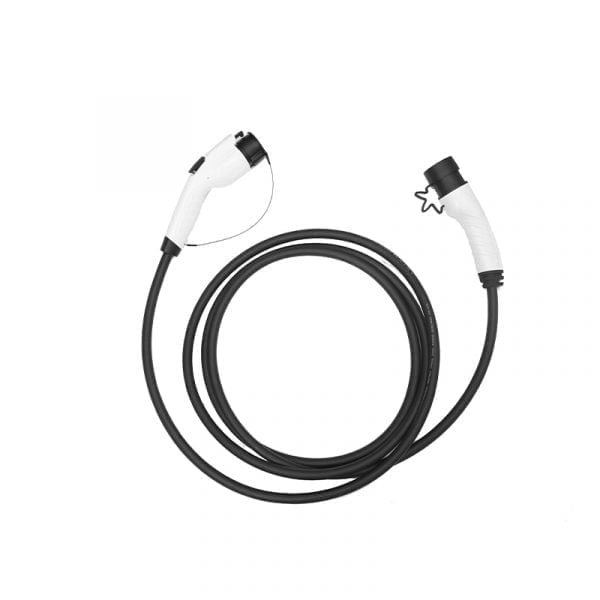

Type1 to Type2 EV Charging Cables
Our premium EV charging cables offer advanced technical features and more robust build quality for improved performance, reliability & longevity. The cables are available in different lengths and colours. Also, we can provide OEM&ODM services to our clients.
Additional information
| Product Name | Type1 to Type2 EV Charging Cable |
|---|---|
| Model Number | FEU-A16D-E&C |
| Certification | CE, FCC, TUV, UKCA |
| Input Voltage | 240V±10% |
| Rated Current | 16A |
| Rated Frequency | 50-60HZ |
| Protection Degree | IP55 |
Xing Wallbox EV Charger is Ideal for
Residential
Hotel
Public Parking
Shopping Mall
Workplace
Features:
1. With a portable and lightweight design, you can take it everywhere you want to go.
2. Our charging cables are safe and reliable in operation, and the heavy-duty 16.5ft outdoor cable helps ensure reachability for even cars parked further away.
3. Simple and fast operation. Just plug it into the electric vehicle socket, and then the charger will automatically detect the connection status and start charging. Parameters cannot be set in the charging state, please set them before charging.
4. Made of high-strength ABS plastic, more durable and for long-term use. Its waterproof design (IP66 grade) ensures that you can use it whenever you want.
| Product Name: | Type 1 to Type 2 EV Charging Cable | ||
| Standard: | SAE J1772/IEC 62196 | ||
| Certificates: | TUV, UKCA, CE, FCC | ||
| Product Type: | FEU-A16D-E&C | FEU-A32D-E&C | |
| AC Voltage Power Input: | 240V±10% | 240V±10% | |
| AC Power Output: | 16A | 32A | |
| Rated Frequency: | 50/60HZ | ||
| Charging Connector: | IEC 62196-2 (Type 2/Mennekes) plug | ||
| Connector Type: | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | |
| Insulation resistance: | >1000MΩ（DC500V） | ||
| Contact Resistance: | 0.5mΩMax | ||
| Operating temperature: | -30℃~+50℃ | ||
| Protection: Type A RCD/Type A+DC6mA | |||
| Charging Cable Length: | 5m or Customize Length | ||
| Application: | AC Home Charging | ||
| IP Degree: | IP55 | ||
| Withstand voltage: | 2000V | ||
| Contact Resistance: | 0.5mΩMax | ||
| Mechanical life: | no-load plug-in / pull-out> 10000times | ||
