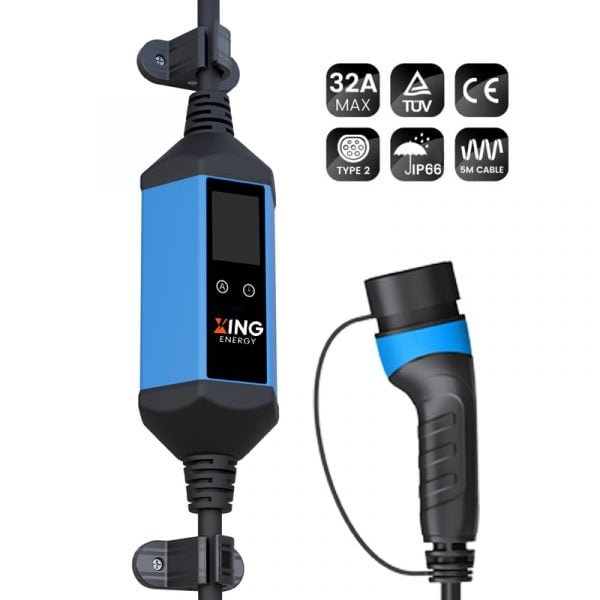

11KW 3 Phase Level 2 Portable EV Charger for Home
This Level 2 EV charger can be carried wherever you go, the max output can reach 11KW to allow fast charging. This AC level 2 EV charger also can be mounted on the pole, applicable for outdoor installation in gardens, outdoor parking areas, street parking areas and so on.
Additional information
| Product Name | 11KW Portable EV Charger |
|---|---|
| Model Number | FE-AM2-16P3 |
| Certification | CE, FCC, TUV, UKCA |
| Input Voltage | 240V±10% |
| Rated Current | 16A |
| Rated Frequency | 50-60HZ |
| Protection Degree | IP66 |
Xing Wallbox EV Charger is Ideal for
Residential
Hotel
Public Parking
Shopping Mall
Workplace
Features:
1. Compact design and powerful performance. 415V electric vehicle charging technology is in an incredibly small size Adjustable capacity ranges from 8A to 16A.
2. Safe and Reliable. TUV, FCC, CE, RoHS and UKCA certify with an IP66 waterproof rating. Equipped with an intelligent temperature control chip, to avoid the danger of excessive temperature.
3. LCD Screen. With an approximate 2.4-inch large LCD display, all car data can be displayed on the charging station when charging. You can see the charging status including current, voltage and temperature.
4. Smart Swing Charging. The charging plug is suitable for Type 2 vehicles and is equipped with a card control switch to effectively prevent charging stealing.
5. Multiple Protection. Under voltage protection, overload protection, short circuit protection, ground circuit protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection.
| Product Name: | Portable EV Charger for Home | |
| Standard: | ICE Standard | |
| Certificates: | TUV,UKCA,CE,FCC | |
| Product Type: | FE-AM2-16P3 | |
| AC Voltage Power Input: | 380V±10% | |
| AC Power Output: | 16A/11KW | |
| Current Adjustable: | 8-16A | |
| Rated Frequency: | 50/60HZ | |
| Charging Connector: | IEC 62196-2 (Type 2/Mennekes) plug | |
| Connector Type: | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) |
| Insulation resistance: | >1000MΩ（DC500V） | |
| Contact Resistance: | 0.5mΩMax | |
| Operating temperature: | -25℃~+50℃ | |
| Leakage Protection: Type A+6mA DC | ||
| Charging Cable Length: | 5m or Customize Length | |
| Application: | Portable EV Charging | |
| IP Degree: | Charging gun IP67, Charging station IP66 | |
| Withstand voltage: | 2000V | |
| Contact Resistance: | 0.5mΩMax | |
| Mechanical life: | no-load plug in / pull out > 10000times | |
