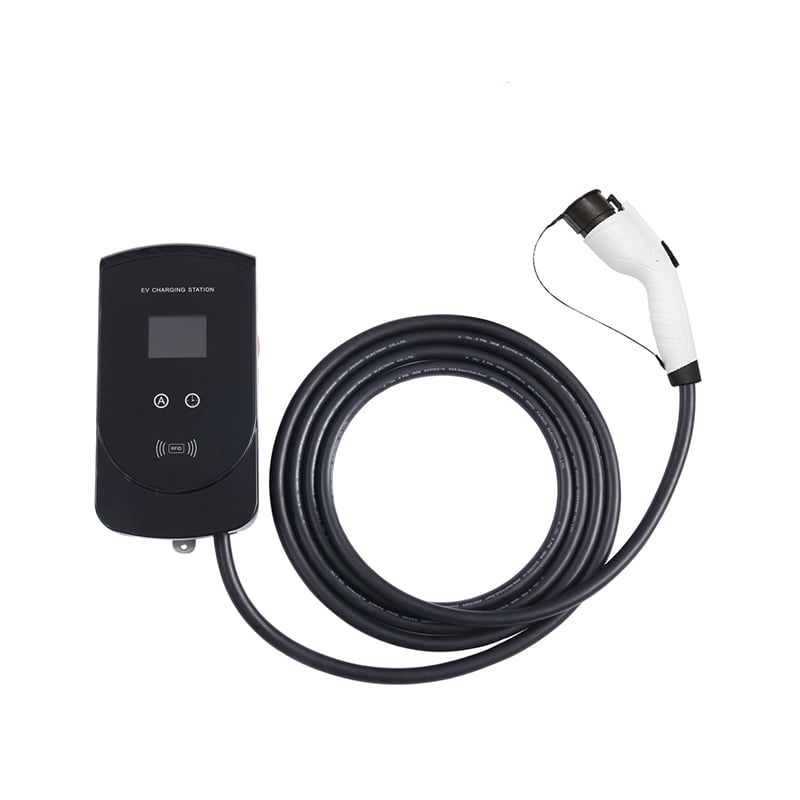

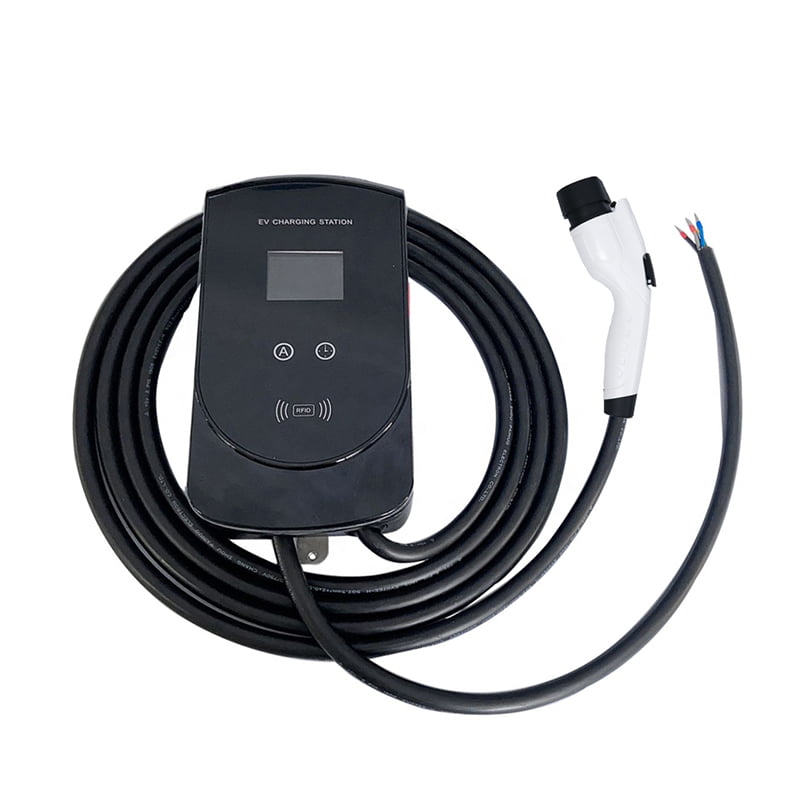

Type 1 AC Wallbox EV Charger
This Level 2 EV charger is suitable for residential and home use, the max output can reach 12KW to allow fast charge. This AC level 2 EV charger also can be mounted on the pole, applicable for outdoor installation in gardens, outdoor parking areas, street parking areas and so on.
Additional information
| Product Name | 12KW Wallbox EV Charger |
|---|---|
| Model Number | FU-AM3-50 |
| Certification | FCC, TUV, UKCA |
| Input Voltage | 240V±10% |
| Rated Current | 50A |
| Rated Frequency | 50-60HZ |
| Protection Degree | IP65 |
Xing Wallbox EV Charger is Ideal for
Residential
Hotel
Public Parking
Shopping Mall
Workplace

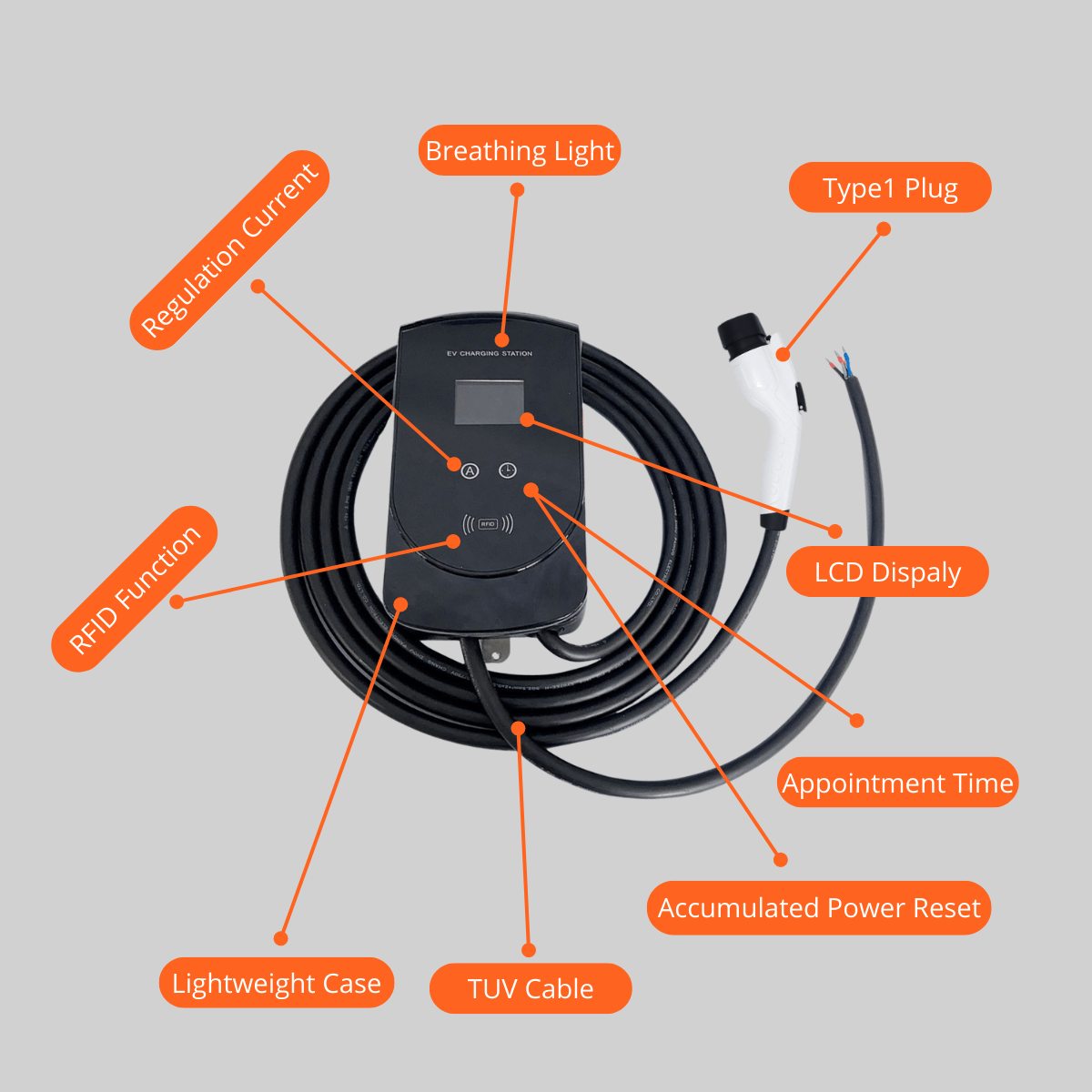

Features:
1. Compact design and powerful performance. 240V Level 2 electric vehicle charging technology is an incredibly small size. Adjustable capacity ranges from 8A to 50A.
2. Safe and Reliable. TUV, FCC and UKCA certify with an IP65 waterproof rating. Equipped with an intelligent temperature control chip, to avoid the danger of excessive temperature.
3. LCD Screen. With an approximate 2.8-inch large LCD display, all car data can be displayed on the charging station when charging. You can see the charging status including current, voltage and temperature.
4. Smart Swing Charging. The charging plug is suitable for Type 1 vehicles and is equipped with a card control switch to effectively prevent charging stealing.

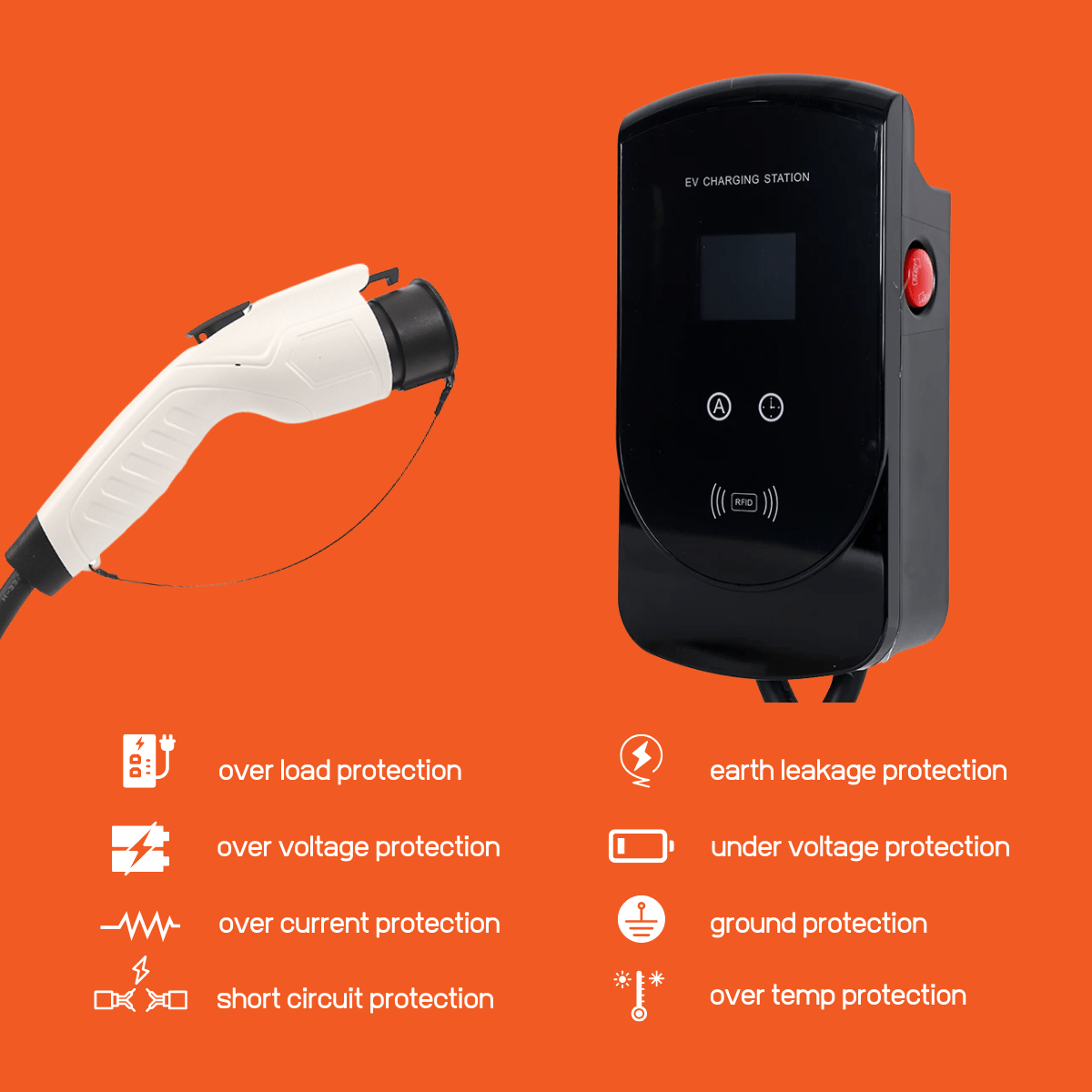

5. Multiple Protection. Voltage protection, overload protection, short circuit protection, ground circuit protection, grounding protection, over-temperature protection, low-temperature protection, and lightning protection.
| Product Name: | Type 1 AC Wallbox EV Charger | |||
| Product Dimensions: | 310mm*161mm*79.8mm | |||
| Certificates: | TUV, UKCA, CE, FCC | |||
| Product Type: | FU-AM3-16 | FU-AM3-32 | FU-AM3-40 | FU-AM3-50 |
| AC Voltage Input: | 240V±10% | |||
| AC Power Output: | 16A/3.5KW | 32A/7KW | 40A/9.6KW | 50A/12KW |
| Current Adjustable: | 8-50A | |||
| Rated Frequency: | 50/60HZ | |||
| Charging Connector: | SAE J1772 | |||
| Internet Connection: | NFC/WIFI | |||
| Insulation resistance: | >1000MΩ（DC500V） | |||
| Contact Resistance: | 0.5mΩMax | |||
| Operating temperature: | -30℃~+50℃ | |||
| Protection: Type A + 6mA DC | ||||
| Charging Cable Length: | 5m or Customize Length | |||
| Application: | AC Home Charging | |||
| IP Degree: | Charging gun IP55，charging station IP65 | |||
| Control: | Auto/Button/Card | |||
| Withstand voltage: | 2000V | |||
| Contact Resistance: | 0.5mΩMax | |||
| Mechanical life: | no-load plug-in / pull-out> 10000times | |||
